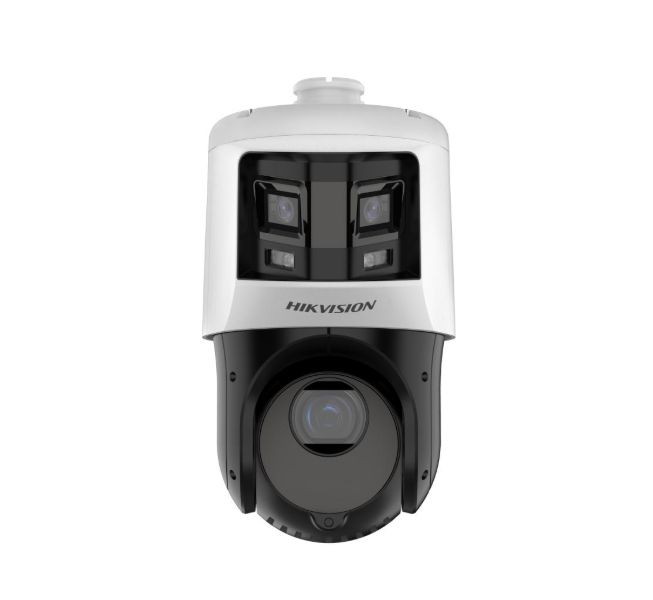

DS-2SE4C425MWG-E/26(F0)
$2,899.00
TandemVu 6+4MP 25X ColorVu & IR Acusense Panoramic Network Speed Dome
- Captures a large area and great details at the same time
- High quality panoramic imaging with 6 MP resolution and details imaging with 4 MP
- Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
- Secures an expansive area with 25× optical zoom and 16× digital zoom
- Expansive night view with up to 100 m IR distance & 30 m white light
- Supports 12V DC & PoE+
- Focuses on human and vehicle targets classification based on deep learning
- Camera
- Image Sensor[Bullet channel]: 1/2.5" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
- Max. Resolution[Bullet channel] 3632 × 1632, [PTZ channel] 2560 × 1440
-
Min. Illumination
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed1 s to 1/30,000 s
- Day & NightICR
- Zoom[PTZ channel] 25 × optical, 16 × digital
- Slow Shutter/yes
- Lens
- Focal Length[Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
-
FOV
[Bullet channel]: Horizontal field of view: 180±10°, Vertical field of view: 80±5°;
[PTZ channel]:
Horizontal field of view: 55° to 2.4° (wide-tele),
Vertical field of view: 33° to 1.4° (wide-tele),
Diagonal field of view: 61.5° to 2.8° (wide-tele)
- Focussemi-auto||manual||auto
- Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.6
- Zoom Speed[PTZ channel]: approx. 3.6 s
- Illuminator
- Supplement Light Type[PTZ channel]: IR; [Bullet channel]: White Light
- Supplement Light Range[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan Speed pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
- Tilt Speed tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
- Proportional Pan/yes
- Presets300
- Preset Freezing/yes
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans
- Park Action preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
- 3D Positioning/yes
- PTZ Status Display/yes
- Scheduled Task preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
- Power-Off Memory/yes
- Video
-
Main Stream
[Bullet channel]
50 Hz：25 fps（3632 × 1632，3680 × 1656）
60 Hz：30 fps（3632 × 1632，3680 × 1656）
[PTZ channel]
50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
-
Sub-Stream
[Bullet channel]
50 Hz：25 fps（1200 × 536，960 × 432）
60 Hz：30 fps（1200 × 536，960 × 432）
[PTZ channel]
50 Hz：25 fps（704 × 576，640 × 480，352 × 288）
60 Hz：30 fps（704 × 480，640 × 480，352 × 240）
-
Third Stream
[Bullet channel]
No
[PTZ channel]
50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288）
60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）
- Video CompressionH.265||H.264||MJPEG
- Video Bit Rate32 kbps to 16384 kbps
- H.264 Typebaseline profile||main profile||high profile
- H.265 Typemain profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio Compression G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
- Audio Bit RateMP2L2: 16 kHz, 32 kHz, 48 kHz; AAC-LC: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
- Audio Sampling RateMP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps, AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps , MP3: 8Kbps, 16Kbps, 24Kbps, 32Kbps, 40Kbps, 48Kbps, 56Kbps, 64Kbps, 80Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps, 224Kbps, 256Kbps, 320Kbps
- Environment Noise Filtering/yes
- Network
- ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour||WebSocket||WebSockets
- Simultaneous Live View20
- APIISAPI,SDK,ISUP,ONVIF
- User/Host32
- SecurityAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
- Network StorageNAS (NFS, SMB/ CIFS)|| ANR
- ClientiVMS-4200||Hik-Connect
- Web BrowserIE11+,Chrome57+,Firefox52+,Safari12+,Edge79.0.309.65+
- Image
- Image Parameters SwitchYes
- Image Settings sharpness, saturation, brightness, contrast
- Day/Night Switch day, night, auto, scheduled-switch
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- DefogDigital defog
- Image StabilizationEIS
- Image EnhancementBLC,HLC,3D DNR
- Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
- Regional Focus/Yes
- Regional Exposure/Yes
- Interface
- Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
- On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
- Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
- Alarm1 alarm input, 1 alarm output
- Reset/yes
- Event
- Basic Event[PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)
- Smart Event[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, and PTZ actions (such as preset, patrol scan, pattern scan)
- Smart LinkagePanorama Linkage
- Deep Learning Function
-
Face Capture
Detects up to 5 faces simultaneously,
Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
- Regional People Counting/Yes
- General
- Power12VDC, PoE+
- DimensionØ 166 mm × 375 mm (Ø 6.5" × 14.7")
- Approx. 2.4 kg (13.2 lb.)
- MaterialADC12
- Operating Condition-30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
- General Function mirror, watermark, password protection
- Demist by heating the glass
- Power Consumption And CurrentMax. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
