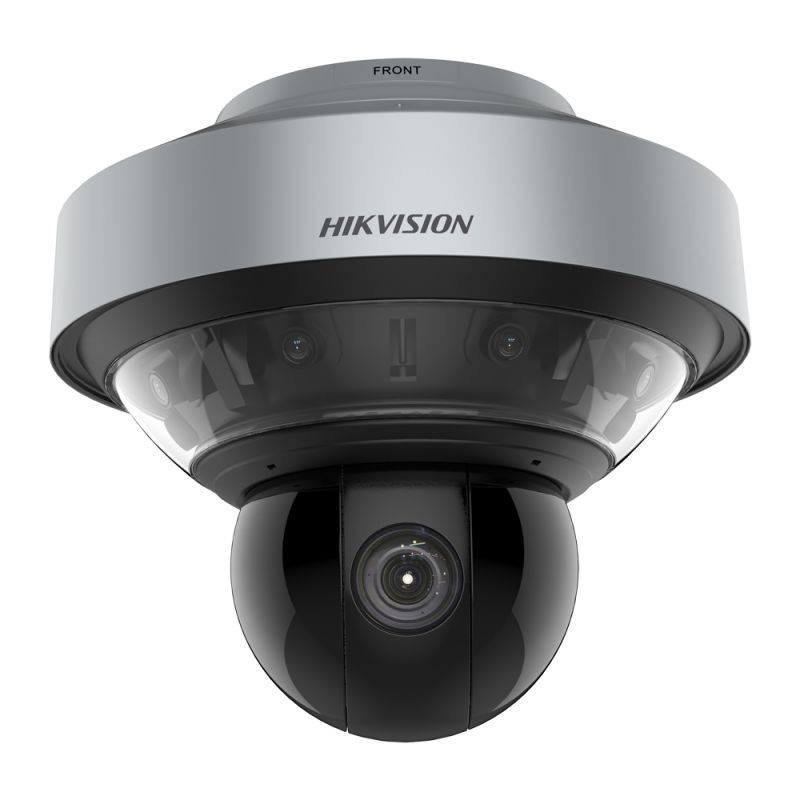

DS-2DP2427ZIXS-DE/440/T2

DS-2DP2427ZIXS-DE/440/T2

by Everlong Security
Save $100.00
$4,499.00
$4,399.00

Notify me when back in stock

24MP 270° Panoramic & PTZ Camera

  • 270° splicing image, the image presents all scenes that covered by the camera
  • Panoramic camera linkage PTZ design, capturing 270° images with the panoramic camera as well as close-up images with the PTZ camera, the high speed PTZ can offer the function of fast detail positioning over panoramic area
  • Each lens up to 4 MP, capturing clear images, and more details can be displayed on video wall
  • Target filtering, based on deep learning algorithms, the targets can be classified into human,vehicle and others to reduce false alarms
  • Built-in heater, ultra-low temperature start up to -40℃



    • Camera
    • Image Sensor

      [Panoramic channel]

      Six sensors, 1/1.8 progressive scan CMOS

      [PTZ channel]

      1/1.8 progressive scan CMOS"

    • Min. Illumination

      [Panoramic channel] Color: 0.0005 Lux @(F1.6, AGC ON), B/W: 0.0001 Lux @(F1.6, AGC ON)

      [PTZ channel] Color: 0.0005 Lux @(F1.2, AGC ON), B/W: 0.0001 Lux @(F1.2, AGC ON), 0 Lux with IR



    • Shutter Speed1 s to 1/30,000 s
    • Zoom[PTZ channel] 40 × optical, 16 × digital
    • Slow Shutter/Yes
    • Lens
    • Focal Length

      [Panoramic channel] 2.8 mm

      [PTZ channel] 6.0 to 240 mm

    • FOV

      [Panoramic channel]

      Horizontal field of view: 270°, Vertical field of view: 85°

      [PTZ channel]

      Horizontal field of view: 56.6° to 1.8° (Wide-Tele)

      Vertical field of view: 33.7° to 1.0° (Wide-Tele)

      Diagonal field of view: 63.4° to 2.0° (Wide-Tele)

    • ApertureF1.2
    • Zoom SpeedApprox. 4.4 s
    • Illuminator
    • Supplement Light TypeIR
    • Supplement Light Range250 m
    • Smart Supplement Light/Yes
    • PTZ
    • Movement Range (Pan)360° endless
    • Movement Range (Tilt)-15° to 90° (Auto Flip)
    • Pan SpeedPan Manual Speed: 0.1°/s to 210°/s (Configurable), Pan Preset Speed: 240°/s
    • Tilt SpeedTilt Manual Speed: 0.1°/s to 150°/s (Configurable), Tilt Preset Speed: 200°/s
    • Proportional Pan/Yes
    • Presets300
    • Preset Freezing/Yes
    • Patrol Scan8 patrols
    • Pattern Scan4 patterns
    • Park ActionPreset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan
    • 3D PositioningYes
    • PTZ Status Display/Yes
    • Scheduled TaskPreset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan/ Dome Reboot/ Dome Adjust/ Aux Output
    • Power-Off Memory/Yes
    • Video
    • Main Stream

      [Panoramic channel]

      50Hz: 25fps (8160 × 2400, 6120 × 1800, 5760 × 1696, 3840 × 1080)

      60Hz: 30fps (8160 × 2400, 6120 × 1800, 5760 × 1696, 3840 × 1080)

      [PTZ channel]

      50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

      60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)



    • Sub-Stream

      [Panoramic channel]

      50Hz: 25fps (2048 × 600, 1280 × 376)

      60Hz: 30fps (2048 × 600, 1280 × 376)

      [PTZ channel]

      50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

      60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

    • Third Stream

      [Panoramic channel]

      50Hz: 25fps (4096 × 1200, 3840 × 1080, 2048 × 600, 1280 × 376)

      60Hz: 30fps (4096 × 1200, 3840 × 1080, 2048 × 600, 1280 × 376)

      [PTZ channel]

      50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

      60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

    • Video Compression

      Main stream: H.265+/H.265/H.264+/H.264

      Sub-Stream: H.265/H.264/MJPEG

      Third Stream: H.265/H.264

    • H.264 TypeBaseline Profile/Main Profile/High Profile
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region Of Interest (ROI)/Yes
    • Audio
    • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
    • Audio Sampling RateMP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz, PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHz
    • Network
    • ProtocolsTCP/IP, IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
    • Simultaneous Live View20
    • APIOpen-ended API, ONVIF (Profile S, Profile G, Profile T), ISAPI, Hikvision SDK, Third-party management platform, ISUP
    • Smooth Streaming/Yes
    • User/Host32
    • SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
    • Network StorageNAS (NFS, SMB/CIFS)
    • ClientiVMS-4200
    • Web BrowserIE 8+
    • Image
    • Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
    • Wide Dynamic Range (WDR)120 dB
    • SNR≥52dB
    • DefogOptical defog
    • Image StabilizationEIS
    • Image EnhancementBLC, HLC, 3D DNR
    • Privacy Mask24 programmable polygon privacy masks, mask color configurable
    • Regional Focus/Yes
    • Regional Exposure/Yes
    • Interface
    • Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
    • On-Board StorageBuilt-in microSD slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
    • Audio

      1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%,

      1 audio output, line level, impedance: 600 Ω

    • Alarm7-ch alarm input, 2-ch alarm output
    • RS-485Half duplex, HIKVISION, Pelco-P and Pelco-D self-adaptive
    • Reset/Yes
    • Fiber OpticalFC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance
    • Event
    • Smart Event

      [Panoramic channel]

      Intrusion detection, line crossing detection, region entrance detection, region exiting detection

      [PTZ channel]

      Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

    • Alarm LinkagePreset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP
    • Smart TrackingManual Tracking; Panoramic Tracking; Event Tracking; support patrol tracking in multiple scenes
    • Deep Learning Function
    • Face Capture

      [PTZ Channel]

      Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

    • People Density

      [Panoramic Channel]

      Support detecting the level of people density in the configured area

    • General
    • Power36 VDC, max. 150 W; Hi-POE, max. 75 W
    • DimensionØ 391.8mm × 400.5mm (Ø 15.43"×15.77")
    • Approx. 18 kg (39.68 lb)
    • MaterialADC12
    • Operating Condition-40°C to 70°C (-40°F to 158°F). Humidity 95% or less (non-condensing)
    Description

    24MP 270° Panoramic & PTZ Camera

    • 270° splicing image, the image presents all scenes that covered by the camera
    • Panoramic camera linkage PTZ design, capturing 270° images with the panoramic camera as well as close-up images with the PTZ camera, the high speed PTZ can offer the function of fast detail positioning over panoramic area
    • Each lens up to 4 MP, capturing clear images, and more details can be displayed on video wall
    • Target filtering, based on deep learning algorithms, the targets can be classified into human,vehicle and others to reduce false alarms
    • Built-in heater, ultra-low temperature start up to -40℃



      • Camera
      • Image Sensor

        [Panoramic channel]

        Six sensors, 1/1.8 progressive scan CMOS

        [PTZ channel]

        1/1.8 progressive scan CMOS"

      • Min. Illumination

        [Panoramic channel] Color: 0.0005 Lux @(F1.6, AGC ON), B/W: 0.0001 Lux @(F1.6, AGC ON)

        [PTZ channel] Color: 0.0005 Lux @(F1.2, AGC ON), B/W: 0.0001 Lux @(F1.2, AGC ON), 0 Lux with IR



      • Shutter Speed1 s to 1/30,000 s
      • Zoom[PTZ channel] 40 × optical, 16 × digital
      • Slow Shutter/Yes
      • Lens
      • Focal Length

        [Panoramic channel] 2.8 mm

        [PTZ channel] 6.0 to 240 mm

      • FOV

        [Panoramic channel]

        Horizontal field of view: 270°, Vertical field of view: 85°

        [PTZ channel]

        Horizontal field of view: 56.6° to 1.8° (Wide-Tele)

        Vertical field of view: 33.7° to 1.0° (Wide-Tele)

        Diagonal field of view: 63.4° to 2.0° (Wide-Tele)

      • ApertureF1.2
      • Zoom SpeedApprox. 4.4 s
      • Illuminator
      • Supplement Light TypeIR
      • Supplement Light Range250 m
      • Smart Supplement Light/Yes
      • PTZ
      • Movement Range (Pan)360° endless
      • Movement Range (Tilt)-15° to 90° (Auto Flip)
      • Pan SpeedPan Manual Speed: 0.1°/s to 210°/s (Configurable), Pan Preset Speed: 240°/s
      • Tilt SpeedTilt Manual Speed: 0.1°/s to 150°/s (Configurable), Tilt Preset Speed: 200°/s
      • Proportional Pan/Yes
      • Presets300
      • Preset Freezing/Yes
      • Patrol Scan8 patrols
      • Pattern Scan4 patterns
      • Park ActionPreset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan
      • 3D PositioningYes
      • PTZ Status Display/Yes
      • Scheduled TaskPreset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan/ Dome Reboot/ Dome Adjust/ Aux Output
      • Power-Off Memory/Yes
      • Video
      • Main Stream

        [Panoramic channel]

        50Hz: 25fps (8160 × 2400, 6120 × 1800, 5760 × 1696, 3840 × 1080)

        60Hz: 30fps (8160 × 2400, 6120 × 1800, 5760 × 1696, 3840 × 1080)

        [PTZ channel]

        50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

        60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)



      • Sub-Stream

        [Panoramic channel]

        50Hz: 25fps (2048 × 600, 1280 × 376)

        60Hz: 30fps (2048 × 600, 1280 × 376)

        [PTZ channel]

        50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

        60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

      • Third Stream

        [Panoramic channel]

        50Hz: 25fps (4096 × 1200, 3840 × 1080, 2048 × 600, 1280 × 376)

        60Hz: 30fps (4096 × 1200, 3840 × 1080, 2048 × 600, 1280 × 376)

        [PTZ channel]

        50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

        60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

      • Video Compression

        Main stream: H.265+/H.265/H.264+/H.264

        Sub-Stream: H.265/H.264/MJPEG

        Third Stream: H.265/H.264

      • H.264 TypeBaseline Profile/Main Profile/High Profile
      • Scalable Video Coding (SVC)H.264 and H.265 encoding
      • Region Of Interest (ROI)/Yes
      • Audio
      • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
      • Audio Sampling RateMP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz, PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHz
      • Network
      • ProtocolsTCP/IP, IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
      • Simultaneous Live View20
      • APIOpen-ended API, ONVIF (Profile S, Profile G, Profile T), ISAPI, Hikvision SDK, Third-party management platform, ISUP
      • Smooth Streaming/Yes
      • User/Host32
      • SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
      • Network StorageNAS (NFS, SMB/CIFS)
      • ClientiVMS-4200
      • Web BrowserIE 8+
      • Image
      • Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
      • Wide Dynamic Range (WDR)120 dB
      • SNR≥52dB
      • DefogOptical defog
      • Image StabilizationEIS
      • Image EnhancementBLC, HLC, 3D DNR
      • Privacy Mask24 programmable polygon privacy masks, mask color configurable
      • Regional Focus/Yes
      • Regional Exposure/Yes
      • Interface
      • Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
      • On-Board StorageBuilt-in microSD slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
      • Audio

        1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%,

        1 audio output, line level, impedance: 600 Ω

      • Alarm7-ch alarm input, 2-ch alarm output
      • RS-485Half duplex, HIKVISION, Pelco-P and Pelco-D self-adaptive
      • Reset/Yes
      • Fiber OpticalFC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance
      • Event
      • Smart Event

        [Panoramic channel]

        Intrusion detection, line crossing detection, region entrance detection, region exiting detection

        [PTZ channel]

        Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

      • Alarm LinkagePreset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP
      • Smart TrackingManual Tracking; Panoramic Tracking; Event Tracking; support patrol tracking in multiple scenes
      • Deep Learning Function
      • Face Capture

        [PTZ Channel]

        Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

      • People Density

        [Panoramic Channel]

        Support detecting the level of people density in the configured area

      • General
      • Power36 VDC, max. 150 W; Hi-POE, max. 75 W
      • DimensionØ 391.8mm × 400.5mm (Ø 15.43"×15.77")
      • Approx. 18 kg (39.68 lb)
      • MaterialADC12
      • Operating Condition-40°C to 70°C (-40°F to 158°F). Humidity 95% or less (non-condensing)
      Shipping

      Shipping is FREE on all orders to customers within the United States.

      We don't want to mess around with fine print and extra charges, we like things to be simple and easy.



      Want to know about our Returns Policy? Read more here.



      Order Confirmation:

      As soon as you place your order you will receive an order confirmation e-mail.  This means that we have received your order in our system and pre-authorized your credit card for the purchase.

      As soon as we receive your order we automatically check to confirm that your order is in stock and available for immediate shipment.  If your item is on back-order or unavailable we will void the pre-authorization and reach out to you via e-mail to see if alternate arrangements can be made.

      If your item(s) are available for immediate shipment (within 5 business days) we will process the charges and get to work preparing your order for shipment.

      Order Shipment:

      If your order is in stock and we process the charges to your credit card it will ship within three business days from the date of your order.

      We will send you shipping confirmation within 24 hours of your order leaving the warehouse to the e-mail address you provided when checking out.

      If you do not receive shipping confirmation from us within four business days of your order feel free to follow up with us at sales@everlongsecurity.com.

      International Orders:

      Please be aware that our products are made specifically for the North American market. This means that they require a [choose 110V or 240V] electrical system to function correctly.

      Our products have generally not been certified for use with other countries electrical safety standards but all of our products are certified to US standards.

      We will happily ship our fantastic products to international customers. Due to the extremely wide variety of product dimensions we will provide an up to date shipping price quote for you on request.

      If you are happy with our shipping quote we will prepare an order and payment though our ultra secure online payment gateway.

      Damages:

      Please inspect the packaging of your item(s) when they arrive, if you notice any damage you should make note of it when signing for delivery or do not agree to accept the delivery.

      If you do accept delivery you are required to immediately take photos using your smart phone or camera of the damaged packaging or products inside the packaging.

      If your item(s) do arrived damaged please send photos to sales@everlongsecurity.com, then visit our Returns page and lodge your return claim online.

      Why Buy From Us

      We get it. You've got a lot of choice when it comes to online retailers. Here's why we think you should shop with us at Everlong Security.

      But first, you should definitely hear from our customers here.

      • Free Shipping USA wide. No extra charges. Ever.
      • Price Match Guarantee. Best prices online guaranteed.
      • 30 Day Easy Returns. Not happy with your product, we'll take it back no questions asked.
      • Great Service. We pride ourselves on the best service, anywhere.
